Welded spiral heat exchangers

Alfa Laval spiral heat exchangers are designed to handle the toughest heat transfer challenges. Whether it’s frequent fouling from dirty media, or limitations from pressure drop and floor space, they are the ultimate problem solver for liquid-to-liquid and two-phase duties. The robust, efficient and compact designs keep both installation and maintenance costs extremely low, and they have a proven reputation for almost never fouling up.

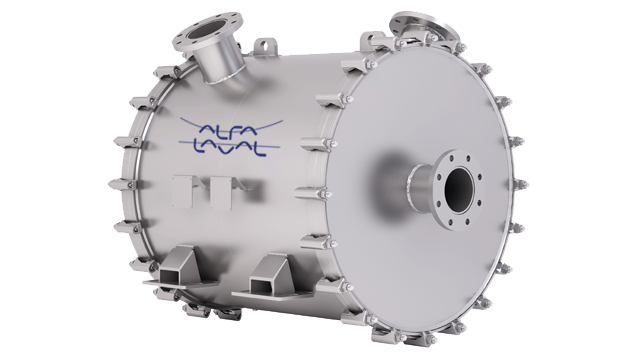

Alfa Laval spiral heat exchanger

Improving sustainability with Alfa Laval’s spiral heat exchangers

  • Minimal fouling, or clogging, in duties involving very dirty, highly viscous or particulate media, ensures uptime
  • Easy-to-open design makes cleaning quick and simple, ensuring low maintenance costs
  • Reduced pipework and steel structures means lower installation costs
  • Increased energy savings and reduced emissions thanks to thermal efficiencies 2-3 times higher than comparable shell-and tube exchangers
  • Each unit is fully customized, offering the best thermal fit for the specific duty

Models

See details about SpiralPro for liquid-to-liquid duties or steam heater duties and find out more about SpiralCond for vacuum condensing and evaporation duties or in stacked column figuration.

SpiralCond for vacuum condensing and evaporation duties small

How it works

How does a spiral heat exchanger work? Read about the working principle and design of our spiral heat exchangers and watch explanatory animations.

spiral heat exchanger cut through

References

Hear from real-life customers how Alfa Laval spiral heat exchangers have helped them increase energy savings, cut emissions and solve issues with severe fouling in their processes.

Happy customers at Mexichem in front of an installed Alfa Laval spiral heat exchanger

Meet our experts

Join our heat exchanger specialists to learn more about the unique design of our spiral heat exchangers or how they resist fouling and blockage even when working with the dirtiest fluids.

Experts
.

Documents

Tiedostot

.

Unique features

Alfa Laval welded spirals with SelfClean
SelfClean™

Erinomainen puhdistus ja laajennettu suorituskyky

Kullekin nesteelle on oma kanava, mikä takaa laitteen luotettavan itsepuhdistumisen.

Lue lisää

Alfa Laval welded spirals with RollWeld
RollWeld™

Automatisoitu ja luotettava kanavakotelorakenne

Kunkin kanavasulun automaattinen taivutus- ja hitsausprosessi tasaisen laadun ja erinomaisen luotettavuuden.

Lue lisää

Alfa Laval welded spirals with HighP
HighP™

Mukautettu ratkaisu korkeapaineympäristöihin

Pyöreä ulkokuori ja itsekantava sisäkierre parantaa mekaanista lujuutta korkean paineen alaisena.

Lue lisää

ALOnsite
ALOnsite™

Qualified support at your facility

True onsite service by skilled engineers, anywhere in the world.

Find out more
