Alfa Laval

PureBilge

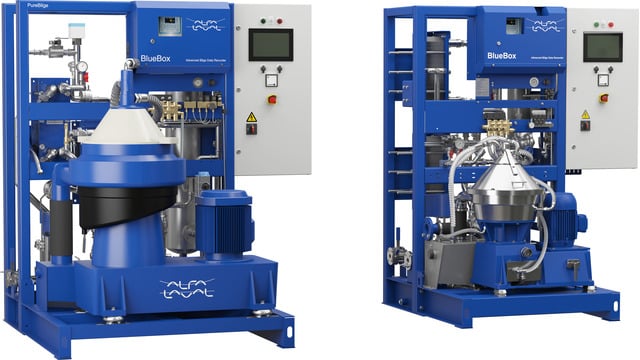

PureBilge is a fully automated centrifugal oily water separation system that cleans oily water onboard vessels at sea. By effectively removing marine oil pollution, it makes oily water safe for discharge overboard.

bilge water system

This reliable single-stage high-speed centrifugal oily water separation (OWS) system effectively cleans large oily water volumes at sea as well as ashore without the use of chemicals, adsorption filter or membranes.

Cleaning efficiency

PureBilge, a high-speed centrifugal oily water separator generally achieves an oil-in-water content of less than 5 ppm. Performance has been proven under real-life operating conditions which are far tougher condition than IMO test requirements. In addition, PureBilge is unaffected by sea heave, oil shocks or high solids loading.

Superior separation performance

PureBilge features a patented XLrator disc inlet, which gently accelerates the oily water as it enters the separator bowl. This prevents the splitting of oil droplets and the formation of additional emulsions, which gives PureBilge a substantial edge over other centrifugal oily water separation systems.

Certified and cost-effective

Certified according to IMO resolutions, MEPC.107 (49) and US Coast Guard document 46 CFR 106.50, PureBilge is designed for unmanned 24/7 operation.

Certified in accordance with IMO regulations, MEPC.107 (49) and US Coast Guard document 46 CFR 106.50, PureBilge is designed for unmanned 24/7 operation.

Man-hours are not required for operation or supervision. Also, there is no reject to pump ashore and no need to transport land wastes such as filter elements, coalescence elements, active carbon, or flocculation deposits. This contributes to reduced operating costs.

Easy to install in any engine room

Designed for plug-and-play installation, PureBilge is a compact and factory-tested oily water separator module that is easy to install in any engine room. Continuous operation means that there is no need for large oily water holding tanks, which frees up space and increases payload capacity.

Fully automated monitoring and control

The new EPC 60 Bilge process controller is an easy-to operate, computer-based Alfa Laval process controller. It facilitates advanced fully automated monitoring and control of PureBilge functions by displaying in clear text process parameters, alarms and other data.

PureBilge options

PureBilge oily water separator includes a broad range of options that further simplify installation and maintenance. Choose the optional equipment that suits your requirements and the existing conditions on board:

  • 5 ppm certificate
  • Heat recovery
  • Safety box
  • Flow meter
  • Sludge removal kit
  • CIP unit
  • Chemical dosing unit
  • Automatic self-cleaning filter
  • Remote control
